X86 Server
Multi-node, high density blade server with shared power, cooling, networking and management infrastructure to support extraordinary simplicity, flexibility and upgradeability.Delivering the high performance and reliability fMulti-node, high density blade server with shared power, cooling, networking and management infrastructure to support extraordinary simplicity, flexibility and upgradeability.Delivering the high performance and reliability for high-end carrier or enterprise applications.or high-end carrier or enterprise applications.

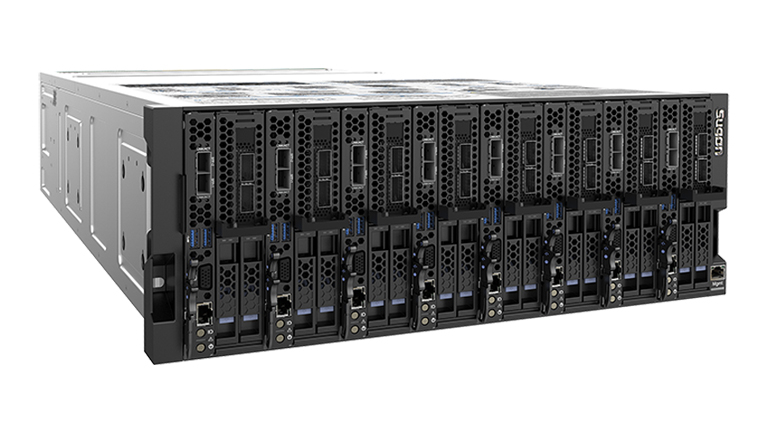

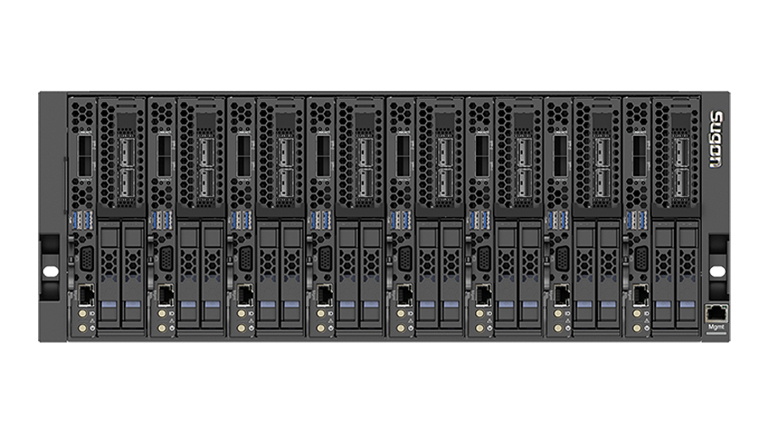

Sugon launched TC4600E blade server, targeting at high performance computing, Web infrastructure and virtualization, which is an industry leading and the latest new generation in conformity with opening standard blade server product.
8 * Two-Socket compute nodes Support max. 448 physical computing cores
Support 100Gb InfiniBand, Omni-Path and other high speed network technologies Support Multi-Host 100Gb high speed network
Support Max. 16 standard PCIe expansion slots
TC4600E G3 Chassis System Technical Specifications
CX50-G30
| Blade chassis physical appearance characteristics | 4U standard chassis height | ||
| Computing blade | Max. 8 computing blades Provide Two-Socket computing blade based on Intel? Xeon? Scalable processor for option | ||
| High speed network | Support EDR 100G InfiniBand network Support Intel 100G Omni-Path network Support Multi-Host 100G InfiniBand network | ||
| GbE Switched network | Support gigabit switched module Externally provide 4 * RJ45 1G ports and 2 * SFP+ 10G ports | ||
| PCIe expansion slot | 8 * PCIe x16 HH HL standard slots (front) 8 * PCIe x8 HH HL standard slots (rear) | ||
| Power module | Configure Max. 4 hot-plug redundancy AC power modules with load balancing and fault switching functions. Provide N+1 or N+N power redundancy configuration | ||
| Heat dissipation module | Configure 5 intelligent redundancy fans with linear pre-compensation function | ||
| Management module | It can realize remote virtual media, remote KVM, blade status, fault locating, startup and shutdown and other comprehensive management and control functions, and provide one front dedicated blade management interface. | ||
| Supporting media | Optional 1* external USB DVD-RW; 1 * USB Hub | ||
| Dimensions | 175.0mm(H)×448.0mm(W)×898.0mm(L) | ||
| Weight | Max. 35kg (excluding computing blade) | ||
| Track for Rackmount specification | 601mm~923mm, 2U, maximum load bearing 135 kg | ||
| Working Temperature | Operating temperature: 5℃～40℃ (41℉～104℉) Storage temperature: -40℃～65℃ (-40℉～149℉) | ||
| Working humidity | Working maximum relative humidity: 80％RH (40℃) Transportation storage maximum relative humidity: 93％ RH (65℃) | ||
